    Small Galvanizing Horizontal Powder Coating Line Pretreatment ISO9001

    Small galvanizing plant automatic powder coating line pre traitment powder coating line


    Product Description

    Small Galvanizing Horizontal Powder Coating Line Pretreatment ISO9001


    working process explain:


    Automatic chain system: 2 sets driving system and 2 tensioning system. Chain can bearing 100kg/single point. Chain speed, 2.5m/min (you can adjust according your need). Total length for the chain, 295m

    Pre-treatment system: Stainless steel spray type.

    Steps are, pre-degreasing --- degreasing --- water washing 1 --- pure water washing 2 --- nano ceremic --- water washing 1 --- pure water washing 2

    Automatic water drying oven: this oven only have the temperature for 120 Celsius.

    Automatic powder coating booth: the cyclone system will help you to recycle the 99.5% of the powder, and the material is PP type, it can allow you to change the color just in 15min. And the reciprocator and automatic gun will help you to do the automatic powder coating. There will be also 2 manual working station to making up the powder coating for some dead corner.

    Automatic powder curing oven: powder curing oven have the temperature for 180~230 Celsius. The work piece can curing 20~30min just according your need.

    Work Piece
    Work piece nameFridge, air conditioner, car parts and so on
    Work piece max size2500*800*2000mm (L*W*H)
    Front door size2400*2440mm (W*H)
    Max weight per hanger200kg/hanger
    Pre-treatment System
    Material for pre-treatmentStainless steel SUS 304
    Working process:Pre-degreasing --- degreasing --- water washing 1 --- pure water washing 2 --- nano ceremic --- water washing 1 --- pure water
    washing 2
    Water Drying Oven
    Size30000*1550*6650mm ( L*W*H )
    Material100mm rock wool panel for the oven temperature 120 Celsius
    Heating system1 set natural gas burner, 430000kcal/h, with 1 set 7.5kw high temperature fan.
    Powder Coating Booth
    Size7000*2000*3350mm (L*W*H)
    Powder recycle systemOne cyclone system, 1 set 30kw circulation fan, 24 pieces filter cartridge, 2 sets of automatic reciprocators, automatic gun, manul powder coating gun
    Automatic Powder Oven
    Size30000*4850*6650mm (L*W*H)
    Material150mm rock wool panel for the oven temperature 180~230 Celsius
    Heating system2 sets natural gas burner, 600000kcal/h for each, with 1 set 15kw high temperature fan.
    Why Choose us

    Small Galvanizing Horizontal Powder Coating Line Pretreatment ISO9001

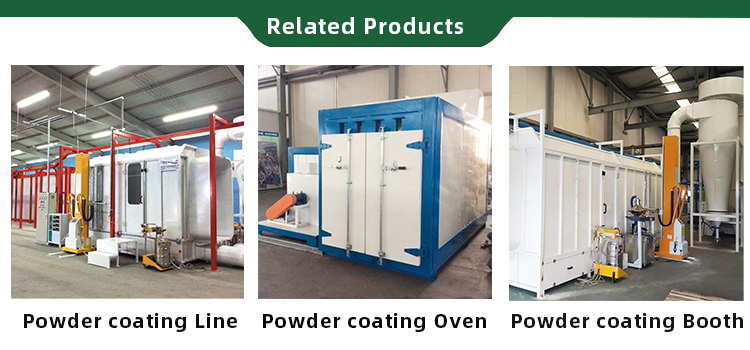

    Related Products

    Small Galvanizing Horizontal Powder Coating Line Pretreatment ISO9001

    Packaging & Shipping

    Small Galvanizing Horizontal Powder Coating Line Pretreatment ISO9001

    Small Galvanizing Horizontal Powder Coating Line Pretreatment ISO9001

    FAQ

    FAQ

    Q1.Are you a factory? Can I go to the factory for inspection?


    A1: We have three production and processing factories, which have been established for more than ten years. A large number of customers come to inspect the factory every year, and we sincerely welcome you to visit our company.

    Q2. What if we won't install it?


    A2: We have the most professional installation engineers can cooperate with on-site installation services.And if you are worried about language barriers, we can also send translators to work with engineers.


    Q3. Our venue is small and do not know how to solve it?


    A3: We have professional technicians who can tailor products for you. Please don’t hesitate to contact us for any questions, we will provide you with the most reasonable solution.

    Q4. What kind of Powder Coating machine you can supply?


    A4: We could supply the customized design for all the sizes of the work piece you produce.

    Q5. How about the delivery time?

    A5: The paint booth need about 30 work days from the design to the end of the producing process.

    Q6. How to pay the deposit?

    A6: We do the international trade by T/T uaually, 30%T/T for the deposit, 70% T/T for the balance.
