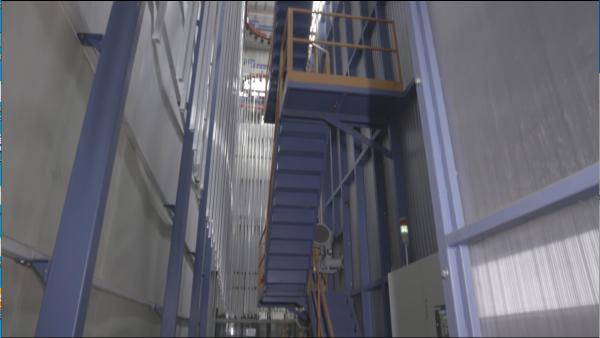

Industrial Powder Coating Curing Oven for Sale
| Inside Size(mm) | 5600*2200*2100mm(LXWXH)(can be customized) |
| Outside size(mm) | 5900*2800*2700mm(LXWXH)(can be customized) |
| Wall panel | Rock wool steel board,150 mm thick, |
| anti-flame and heat-insulation |
| Fan | 1 set 5.5 kw high-temperatute fan,air flow capacity:9000m3/h |
| With air duct inner the oven,made of 2mm galvanized sheet |
| Heating system | 3kw*26units of stainless steel heating pipe,cover with 2.0mm thick
galvanized steel,max temp:220 ℃, heating time: 20-25 min (180-220℃) |
| Control system | Temperature alarm(With inductor in the oven) ,stop button,process
setting system:could set baking time and temperature,when baking
time arrive,stop automaticly |
| Total power | 83.5kw |
Powder Curing Oven with Top Rail
Powder Curing Oven with Ground Rail
Powder Curing Oven Components
First Pre-sale services:
1). Select equipment model;
2). Design and manufacture according to client’s special
requirement.
3). Train technical personal for clients.
Second Services during the sale:
1). Pre-check and accept products ahead of delivery.
2). Help clients to draft solving plans.
Third After-sale service:
1). Assist clients to prepare for the first construction scheme.
2). Install and debug the equipment.
3). Train the first-line operators.
4). Examine the equipment.
5). Take initiative to eliminate the trouble rapidly.
6). Provide perfect service.
7). Provide technical exchanging
Fourth Overseas Installiation Service
If the customers need overseas installiation service, we can send
professional engineer to install for customers in your workshops
but need to charge the cost.
