    powder coating curing line with heating exchange box

    Ask Lasest Price
    Brand Name : ABD
    Supply Ability : 20 Set/Sets per Month
    Price : Negotiate
    Certification : CE
    • Product Details
    • Company Profile

    powder coating curing line with heating exchange box

    Product Description

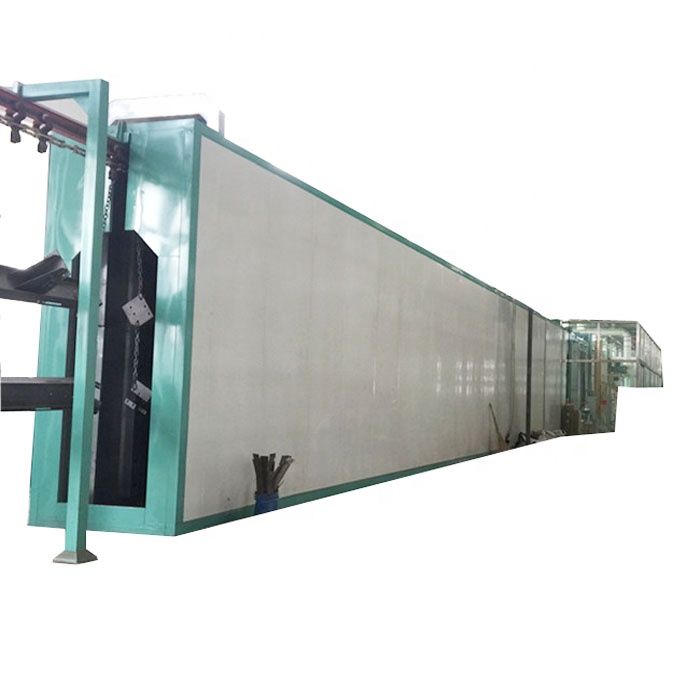

    powder coating curing oven with heating exchange box
    Item
    Description
    External Dimensions
    6000*3200*3500mm
    Internal Dimensions
    5750*2900*3275mm
    Wall Panel
    150mm thick heat-resisting rock wool steel board,including:
    Outside panel is insulated galvanized sheet boards
    Inside panel is insulated galvanized sheet plate
    Keep heat, save energy and high curing efficient
    Entrance Door
    Entrance door,insulated heat-resisting 100mm rock wool steel board
    Handiwork metal plate 2-door for work pieces in and out.
    Be equipped doorknob
    Air Duct
    Air duct with insulation rock wool layer, preventing heat lost and saving energy
    Heat Air Circulating Fan
    Supply the enough air for the circulations of the oven to make sure the heat circulating and save energy.
    Heating System
    LPG/Diesel Heating System,Gas/Diesel Burner inside of the heating cabinet
    Riello Brand LPG/Diesel burner, stainless steel heating exchanger, argon arc welding;
    Temperature:200-220°C ,heating time: 25-30 min,
    Control System
    Control panel is outside of oven to control temp and other functions;

    Temperature alarm(With inductor in the oven) ,stop button, process setting system:could set baking time and temperature, when baking time arrive, stop automatically
    Power
    The power is customized, according to the customer's city power.
    Certificate
    CE, ISO9001
    MOQ
    1 set
    Detailed Images
    powder coating curing line with heating exchange box
    powder coating curing line with heating exchange box
    Company Profile
    powder coating curing line with heating exchange box
    Packing & Delivery
    powder coating curing line with heating exchange box
    Packaging
    Containers Needed
    Our egineers will calculate how many containers will need according to the confirmed order.
    Packaging Details
    1. Plastic foam paper + hard papers covered to make sure the perfect conditions of the equipment during the delivery and shipping;

    2. Every parts will be labeled with name, dimensions, number, etc for clients easier checks when receive the goods;
